X4RACE SMART

HL-300

Maximum Stability. Full Metal Feel.

Full analog control

Over 90% metal construction

Highest stability under load

Most rigid and predictable feel

54,00 €

VAT included

In stock

Ships next business day from Poland

Handle Finish

Clear

DELIVERY

Delivery in EU:

3–5 business days

Shipping, returns & warranty →

Direct from manufacturer.

Better support. No marketplace fees.

Compatibility & platform

COMPATIBILITY

Steering wheels

Logitech • Thrustmaster • Fanatec • Simucube Moza • Simagic

Game compatibility →

See full list

If your steering wheel works on Windows, the handbrake will work as well.

PLATFORM

Not compatible with PlayStation or Xbox.

SPECIFICATIONS & MANUAL

Technical specifications →

Installation guide →

Download manual →

X4RACE Smart HL-300

The most solid model in the SMART series

HL-300 is the top model in the SMART lineup.

It uses the same electronics and precision as all SMART handbrakes — but introduces a predominantly metal construction designed for maximum rigidity and stability.

This is the model for users who:
•want the most solid possible setup
•expect consistent, repeatable input
•prefer a mechanical, rigid feel

👉 Same technology. Maximum solidity.

Full analog control with extended range

HL-300 uses a contactless Hall Effect sensor with a neodymium magnet.

This ensures smooth, precise and wear-free input — with maximum consistency.

What makes it different:
The HL-300 offers the largest working range in the SMART series.

Technical parameters:
•Lever travel: 65 mm
•Rotation angle: 17°
•Force at end of lever: 14 N

Maximum control through rigidity and range

The combination of:
•longer travel
•higher force
•rigid metal construction

results in a more precise and predictable control.

What this gives you:
✔ More accurate drift initiation
✔ Better control over angle and rotation
✔ Higher repeatability of movement

👉 Especially noticeable in rally and tight corner scenarios.

Over 90% metal construction

HL-300 is built for maximum rigidity.
•Steel base
•Steel lever mount (5 mm)
•Aluminium handle
•Metal body
•Weight: 750 g

The high metal content significantly reduces flex and unwanted movement.

👉 This is the most solid construction in the SMART series.

Solid mounting under heavy use

HL-300 features a reinforced metal clamp system.
•Max desk thickness: 58 mm

✔ High resistance to force
✔ Minimal movement during aggressive inputs
✔ Reliable long-term stability

Designed for users who push their setup harder.

Plug & Play on Windows PC

•Connection: USB 2.0 (2 m cable included)
•Platform: Windows PC

No drivers required.

Works with all steering wheels and most racing games.

Change analog mode to keyboard mode handbrake

Dual mode compatibility

•Analog mode – full control
•Keyboard mode – for unsupported games

👉 Compatibility depends on the game, not the device.

PRODUCT VIDEO

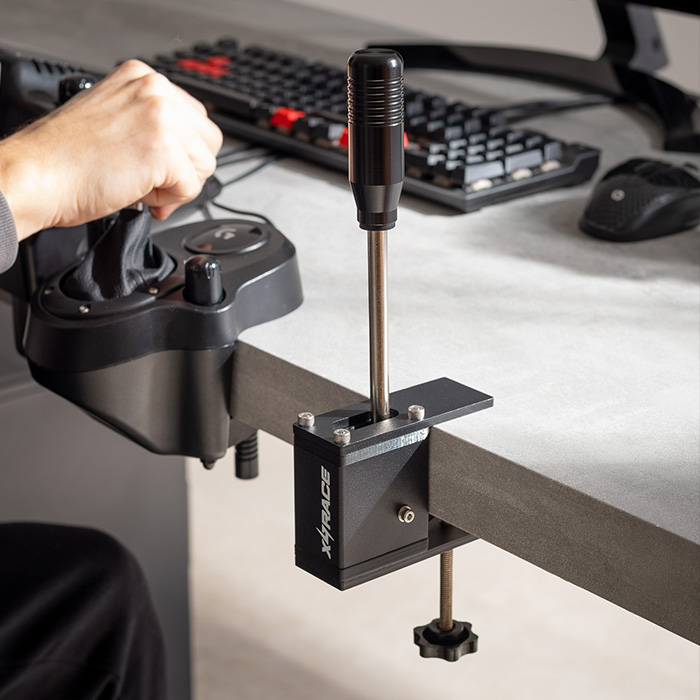

HL-300 desk setup overview

A quick look at the HL-300 mounted on a desk and used in a dynamic sim racing setup, where rigidity and analog control matter most.

COMPATIBILITY

Not sure if your game supports it?

Check the full compatibility list and learn how support actually works across different games.

SMART SERIES

Part of the SMART system

All SMART handbrakes share the same core:
✔ Same electronics
✔ Same precision
✔ Same compatibility

The difference is in construction:
•GL-200 → lightweight and simple
•SL-100 → reinforced and more stable
•HL-300 → full metal and most solid

As you move up:
✔ Stability increases
✔ Structural rigidity improves
✔ Mechanical feel becomes more pronounced

👉 Same control. Maximum solidity.

Compare SMART models

Same technology. Different build levels.

29,00 €

39,00 €

54,00 €

MODEL

Metal Content (%)

Main Materials

Handle Material

Weight (g)

Sensor Type

End Force (N)

Rotation Angle (°)

Lever Travel (mm)

Height Above Desk (cm)

Mounting System

Clamp Material

Max Desk Thickness (mm)

GL-200

2%

Metal Content (%)

ABS plastic

Main Materials

Foam

Handle Material

250

g

Weight (g)

Hall Effect Sensor

Sensor Type

11

N

End Force (N)

Rotation Angle (°)

Lever Travel (mm)

22

Height Above Desk (cm)

Integrated Clamp

Mounting System

ABS plastic

Clamp Material

48

Max Desk Thickness (mm)
SL-100

65%

Metal Content (%)

Steel / ABS

Main Materials

ABS plastic

Handle Material

650

g

Weight (g)

Hall Effect Sensor

Sensor Type

13

N

End Force (N)

Rotation Angle (°)

Lever Travel (mm)

25

Height Above Desk (cm)

Integrated Clamp

Mounting System

Steel 5mm

Clamp Material

68

Max Desk Thickness (mm)
HL-300

95%

Metal Content (%)

Steel / Aluminium / PLA

Main Materials

Aluminium

Handle Material

750

g

Weight (g)

Hall Effect Sensor

Sensor Type

14

N

End Force (N)

Rotation Angle (°)

Lever Travel (mm)

20

Height Above Desk (cm)

Integrated Clamp

Mounting System

Steel 5mm

Clamp Material

58

Max Desk Thickness (mm)

In the box

Everything required for installation and use is included.

Handbrake x 1

Rubber anti-slip pad x 1

Rubber pressure pad x 1

Mounting screw x 1

Metal pressure plate x 1

Clamping screw with knob x 1

USB cable x 1

User manual x 1

Tech specs

Clear technical data and key product parameters.

General

Series

SMART

Model

HL-300

Product condition

new

Platform

Windows

Minimum: Windows 10

Works as a standard USB HID controller on PC

Sensor & Input Technology

Sensor type

Hall Effect Sensor

Sensor resolution

12 bit

Plug & play

Yes

Driver required

Processor

32 bit 144 MHz

Mechanical Properties

End Force

14 N

Lever Travel

65 mm

Materials & Construction

Main Materials

Steel / Aluminium / PLA

Handle Material

Aluminium

Metal Content

95 %

Mounting

Mount Type

Integrated Clamp

→ built-in clamping mechanism (no additional hardware required)

Clamp Material

Steel 5mm

Max Desk Thickness

58 mm

Dimensions & Weight

Width

56 mm

Height

270 mm

Length / Depth

100 mm

Height Above Desk

20 cm

Weight

750 g

Connectivity & Power

Interface

USB

USB Connector

USB-A ⭤ USB-C

Power
